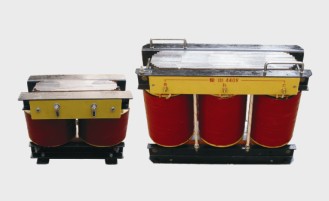

Solid-cast Isolation Transformer
Time:2010-7-28 9:39:15

·Introduction:

It is widely used in the situation that requires electric isolation between load power and power network in electric power system and mining industry. It is a isolation device that can anti-interfere the power and power network of automatic control system, telecommunication instruction network, computer-control center and precision testing experiment system.

·Technical parameter:

Capcity: 5, 10, 20, 30, 50, 75, 100, 125, 160, 200, 250, 315, 500KVA;

Working voltage(primary/secondary): 220/110V, 220/220V, 220/380V,

                               380/220V, 380/380V;

No-load current: ＜5%;

Inpedance voltage: ＜7%;

Enviromental condition: Temperature: -5℃～40℃;

Humidity: ＜75%RH;

Ways of potential isolation: single and double isolation.
